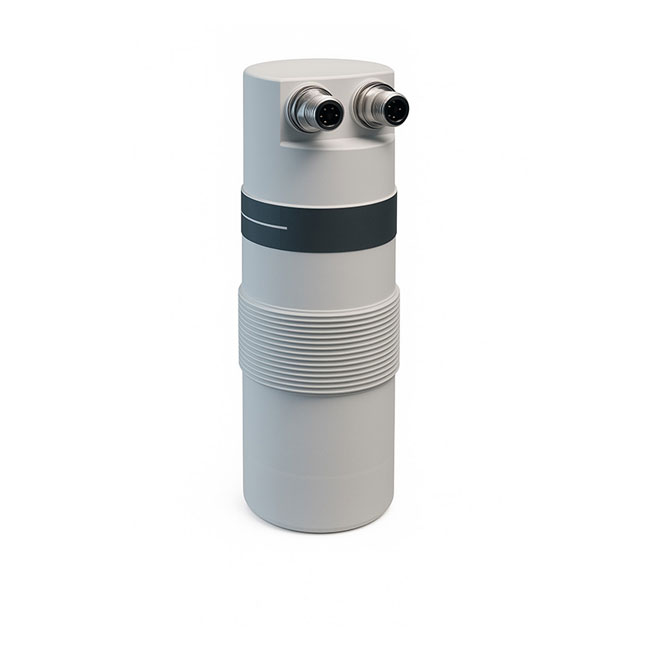

Radar Level Sensor for Liquids and Solids

The 80 GHz radar level sensor is the ideal solution for continuous, non-contact measurement in tanks, silos, basins and natural environments. It provides high-precision and reliable readings even in the presence of vapors, condensation, dust, or foam.

80 GHz Radar Technology

The sensor emits high-frequency pulses that are reflected by the liquid or solid surface and analyzed to determine the level. The non-contact operation ensures low maintenance and long service life.

Main Features

• High-resolution pulsed radar (80 GHz)
• Measuring range:
  • Liquids: up to 20 m
  • Solids: up to 10 m
• Sensor material: polypropylene (PP), resistant to corrosive substances
• Protection rating IP67/IP68
• Configuration:
  • On-board buttons (IP67 version)
  • App or software configuration (Bluetooth / Modbus)
• Outputs:
  • Analog 4–20 mA
  • Modbus RTU
  • 2 relay outputs for alarms and automation
• Integrated self-diagnostics with alarm relay and continuous sensor monitoring

Recommended Applications

• Water treatment, lift stations, and wastewater collection
• Tanks with acids, solvents, or aggressive liquids
• Silos containing powders, granules, or bulk solids
• Environmental monitoring: rivers, canals, natural or artificial basins
• Process control in chemical, food, and pharmaceutical industries

Contact us for more information or to request a custom technical proposal.
